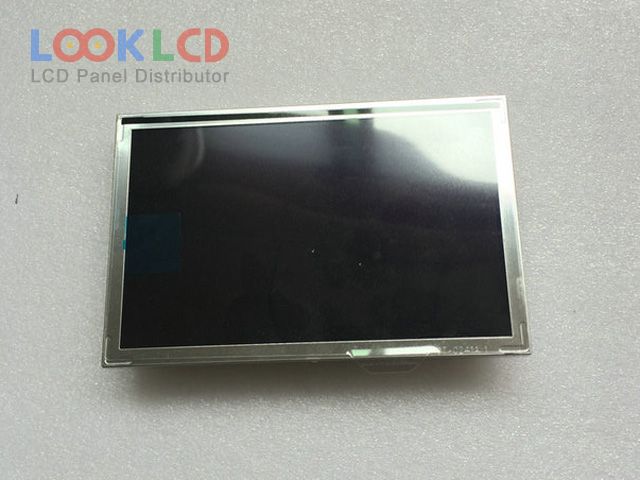

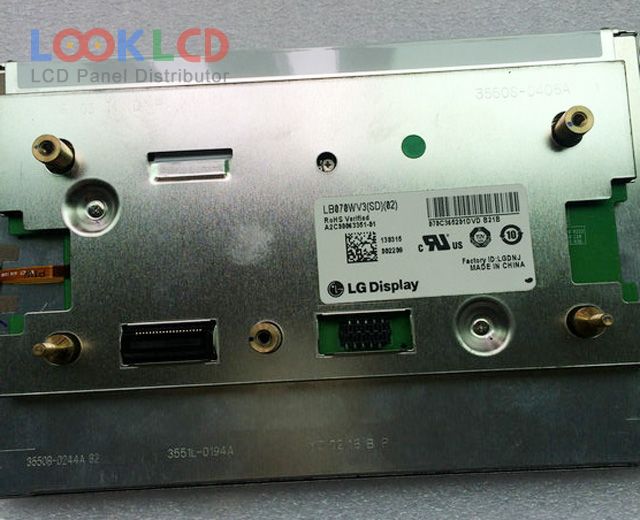

| PartNumber | LB070WV3-SD02 |
| Značka | LG Display |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 470 |
| CR | 900:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | LG Display |
| panelový model | LB070WV3-SD02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 170×109.6×29.4 mm |
| povrch | Antiglare, Antireflection |
| jas | 470 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193163% |
| Doba odezvy | 15/14 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/30/30 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 5S3PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | CNS |
