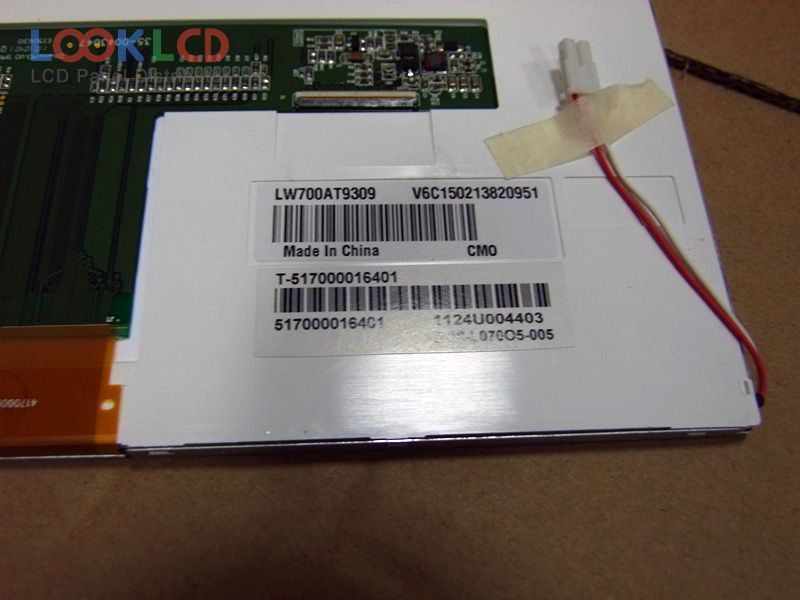

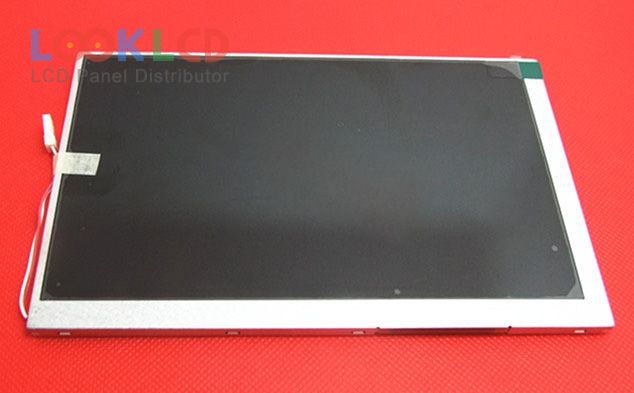

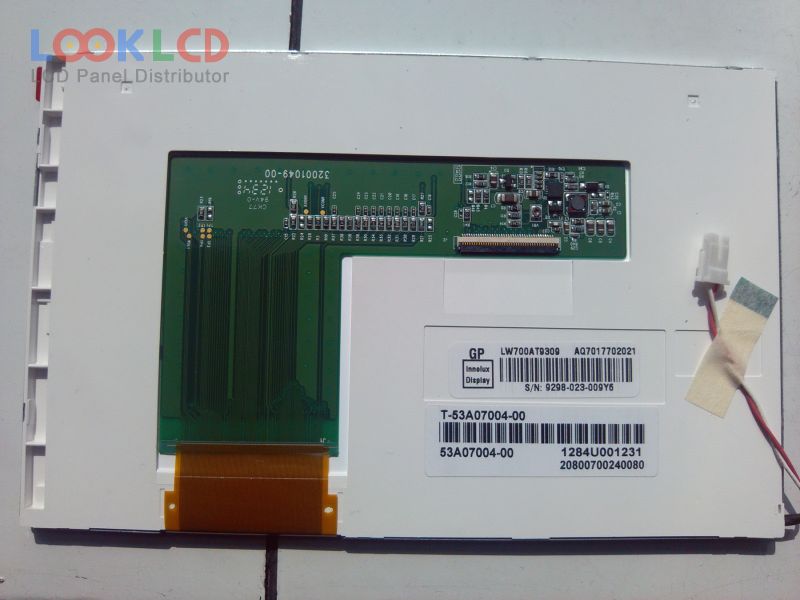

| PartNumber | LW700AT9309 |
| Značka | Innolux |
| Velikost | 7.0 |
| aplikace | DPF |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 350 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | ChiHsin |
| panelový model | LW700AT9309 1 Compatible model |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104.44×5.9 mm |
| povrch | Antiglare |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193145% |
| Doba odezvy | 5/11 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S8PWLEDWithout Driver |
| signálové rozhraní | TTL (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | DPF |
