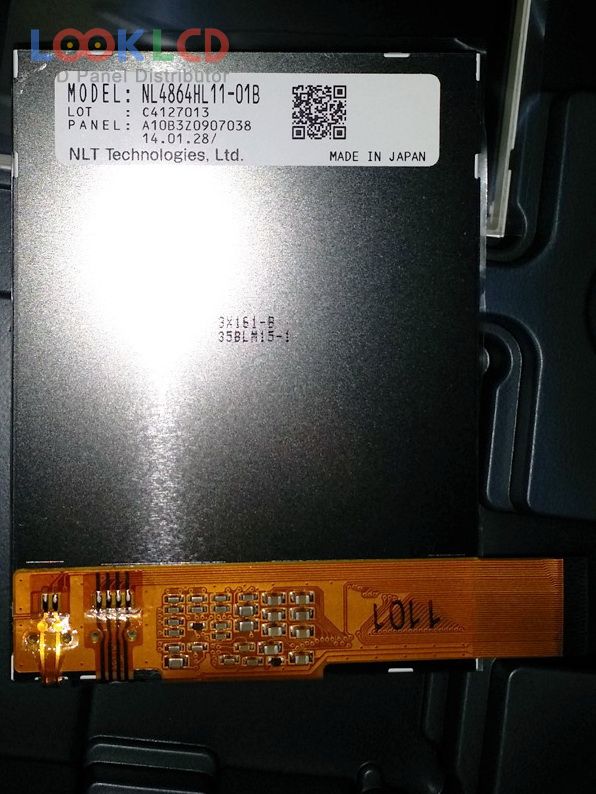

| PartNumber | NL4864HL11-01B |
| Značka | NLT |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 480×640 |
| Složení | LCM |
| Jas | 200 |
| CR | 180:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | NEC |
| panelový model | NL4864HL11-01B |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 480(RGB)×640 , VGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 53.28×71.04 mm |
| obrys | 63.5×85 mm |
| povrch | Clear, Hard coating (3H) |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 180:1 (Typ.)(Transmissive) |
| zobrazit barvy | 262K (6-bit), CIE193140% |
| Doba odezvy | |
| úhel pohledu | 30/30/30/35 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLED |
| signálové rozhraní | CMOS (1 ch, 6-bit), 45 pins |
| vstupní napětí | 3.0/3.0V (Typ.)(VCC/VCCIO) |
| aplikace | PDA |
| 35HVE0H | SII | 3.5 | 320×480 |
| 35QVW1T | SII | 3.5 | 320×240 |
| COM35H3P09UTC | ORTUSTECH | 3.5 | 480×640 |
| DLC0350BMG-1 | Other | 3.5 | 240×320 |
| GCX123AKQ-E | JDI | 3.5 | 240×320 |
| LQ035Q1DH01 | SHARP | 3.5 | 320×240 |
| NL4864HL11-01B | NLT | 3.5 | 480×640 |
| PT035TN01 V.6 | Innolux | 3.5 | 320×240 |
| TX09D70VM1CEA | KOE | 3.5 | 240×320 |
| TX09D83VM3CEA | KOE | 3.5 | 240×320 |
| ACX502BMU-7 | SONY | 3.5 | 240×320 |
| LQ035Q7DH06 | SHARP | 3.5 | 240×320 |
| LS037V7DD05 | SHARP | 3.7 | 480×640 |
| NL2432HC22-22B | NLT | 3.5 | 240×320 |
| NL2432HC22-25E | NLT | 3.5 | 240×320 |
| NL2432HC22-32B | NLT | 3.5 | 240×320 |
| NL2432HC22-40J | NLT | 3.5 | 240×320 |
| TD026TTEA1 | TPO | 2.6 | 480×640 |
| TM038QV-67A02E | SANYO | 3.8 | 320×240 |
| TX09D23VM1CAA | KOE | 3.5 | 240×320 |
