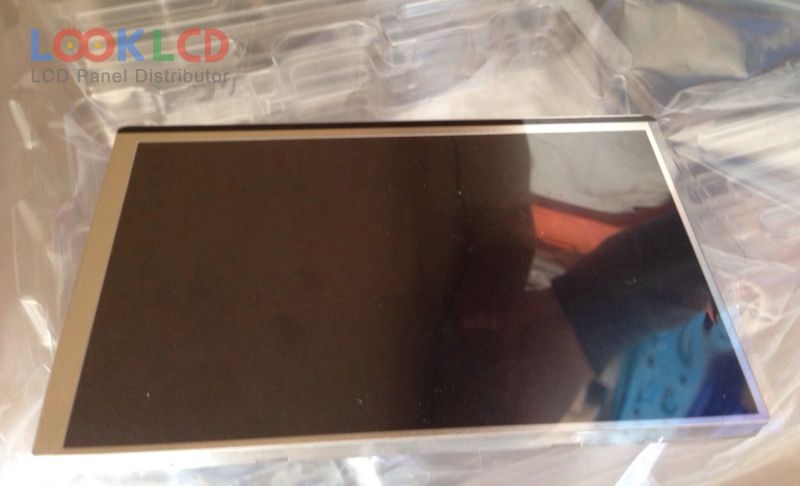

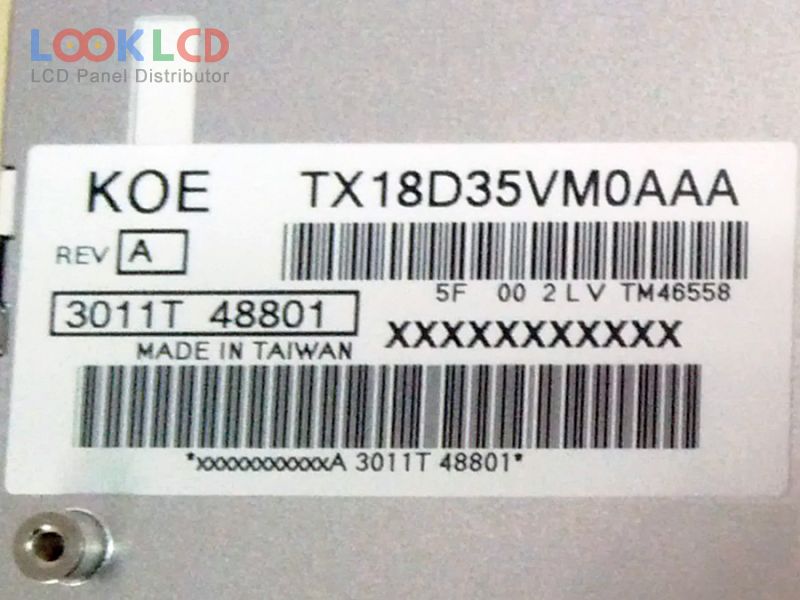

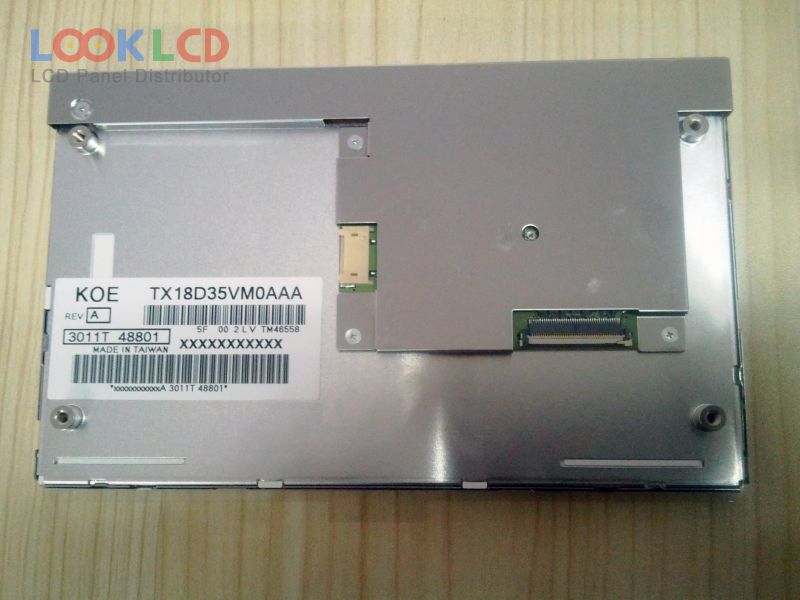

| PartNumber | TX18D35VM0AAA |
| Značka | KOE |
| Velikost | 7.0 |
| aplikace | CNS |
| Rozlišení | 800×480 |
| Složení | LCM |
| Jas | 450 |
| CR | 600:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | HITACHI |
| panelový model | TX18D35VM0AAA |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 800(RGB)×480 , WVGA |
| zobrazovací mód | IPS Pro, Normally Black, Transmissive |
| aktivní oblast | 152.4×91.44 mm |
| obrys | 165×104×13.3 mm |
| povrch | |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 600:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 45 (Max.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 3S4PWLEDEmbedded (LED Driver) |
| signálové rozhraní | CMOS (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VDD) |
| aplikace | CNS |
