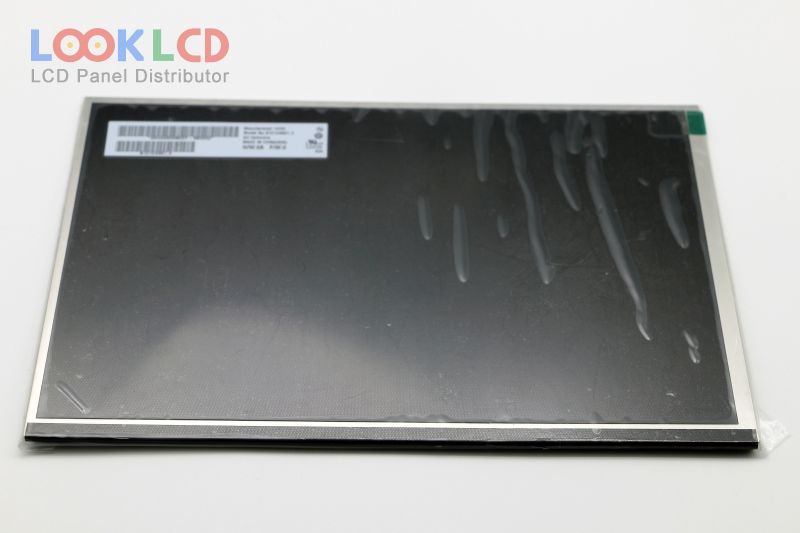

| PartNumber | YX101UWX002C |
| Značka | SEBO |
| Velikost | 10.1 |
| aplikace | PAD |
| Rozlišení | 1280×800 |
| Složení | LCM |
| Jas | 350 |
| CR | 800:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | SEBO |
| panelový model | YX101UWX002C |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 10.1 inch |
| rozlišení | 1280(RGB)×800 , WXGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 216.96×135.6 mm |
| obrys | 229.46×149.1×4.25 mm |
| povrch | Glare (Haze 0%) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 800:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193147% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S6PWLEDWithout Driver |
| signálové rozhraní | LVDS (1 ch, 8-bit), 45 pins |
| vstupní napětí | 3.3V (Typ.) |
| aplikace | PAD |
| B101EAN02.2 | AUO | 10.1 | 800×1280 |
| B101UAN07.0 | AUO | 10.1 | 1200×1920 |
| G101EVN01.0 | AUO | 10.1 | 1280×800 |
| G101STN01.3 | AUO | 10.1 | 1024×600 |
| HJ101IA-01Q | Innolux | 10.1 | 1280×800 |
| HV101HD1-1E2 | HYDIS | 10.1 | 1366×768 |
| LTN101NT05-U03 | Samsung | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP1 | BOE | 10.1 | 1280×800 |
| YX101UWX002C | SEBO | 10.1 | 1280×800 |
| B080EAN01.1 | AUO | 8.0 | 800×1280 |
| B101EAN01.7 | AUO | 10.1 | 1280×800 |
| HE070IA-04F | Innolux | 7.0 | 800×1280 |
| HSD100PXN1-A00-C40 | HannStar | 10.0 | 1024×768 |
| LD070WX3-SL01 | LG Display | 7.0 | 800×1280 |
| LP101WX2-SLA1 | LG Display | 10.1 | 1280×800 |
| LP125WH2-SPM2 | LG Display | 12.5 | 1366×768 |
| LTL089CL02-002 | Samsung | 8.9 | 1920×1200 |
| LTN121AP06-301 | Samsung | 12.1 | 1280×800 |
| VVX10F004B00 | Panasonic | 10.1 | 1920×1200 |
