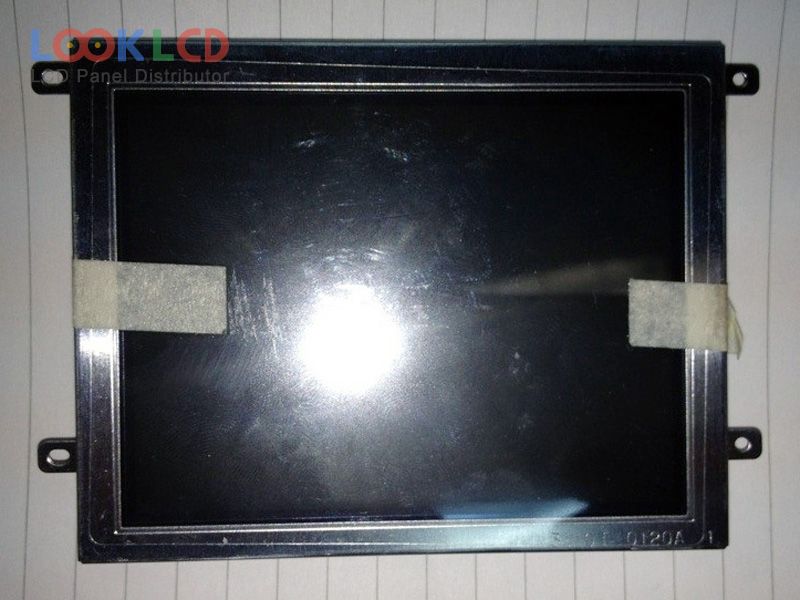

| PartNumber | LB040Q02-TD05 |
| Značka | LG Display |
| Velikost | 4.0 |
| aplikace | CNS |
| Rozlišení | 320×240 |
| Složení | LCM |
| Jas | 450 |
| CR | 400:1 |
| Barvy | 262K |
| Podsvícení | CCFL |
| Rozhraní | TTL |
| značka panelu | LG.Philips LCD |
| panelový model | LB040Q02-TD05 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 4.0 inch |
| rozlišení | 320(RGB)×240 , QVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 81.6×61.2 mm |
| obrys | 98.4×78 mm |
| povrch | Antiglare |
| jas | 450 cd/m² (Typ.) |
| kontrastní poměr | 400:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 10/30 (Typ.)(Tr/Td) |
| úhel pohledu | 70/70/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | CMOS/TTL (1 ch, 6-bit), 40 pins |
| vstupní napětí | 3.3V (Typ.)(VCC) |
| aplikace | CNS |
