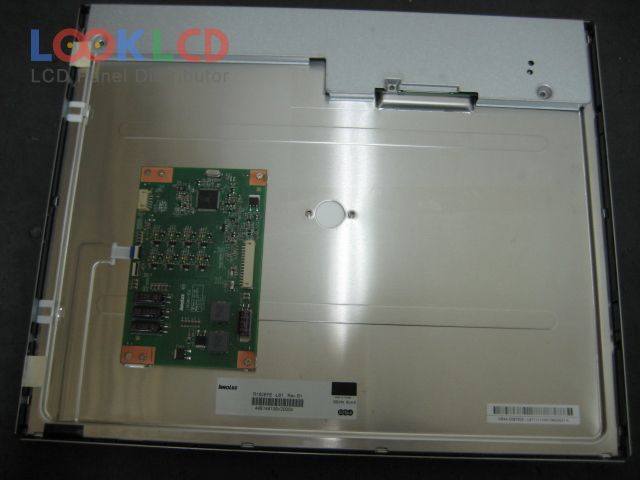

| PartNumber | R190EFE-L61 |
| Značka | Innolux |
| Velikost | 19.0 |
| aplikace | MD |
| Rozlišení | 1280×1024 |
| Složení | LCM |
| Jas | 650 |
| CR | 900:1 |
| Barvy | 16.7M |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | INNOLUX |
| panelový model | R190EFE-L61 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 19.0 inch |
| rozlišení | 1280(RGB)×1024 , SXGA |
| zobrazovací mód | DD-IPS, Normally Black, Transmissive |
| aktivní oblast | 376.32×301.06 mm |
| obrys | 396×324×20.7 mm |
| povrch | Antiglare, Hard coating (3H) |
| jas | 650 cd/m² (Typ.) |
| kontrastní poměr | 900:1 (Typ.) |
| zobrazit barvy | 16.7M (8-bit), CIE193172% |
| Doba odezvy | 15/15 (Typ.)(Tr/Td) |
| úhel pohledu | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | WLEDEmbedded (LED Driver) |
| signálové rozhraní | LVDS (2 ch, 8-bit), 30 pins |
| vstupní napětí | 12.0V (Typ.) |
| aplikace | MD |
