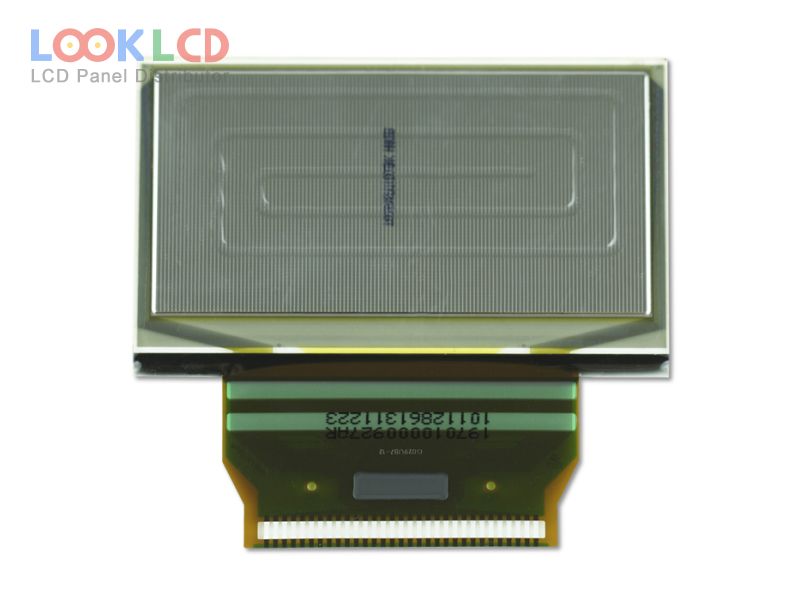

| PartNumber | RGS24128064YW004 |
| Značka | RiTdisplay |
| Velikost | 2.4 |
| aplikace | IA |
| Rozlišení | 128×64 |
| Složení | OLED |
| Jas | 80 |
| CR | 2000:1 |
| Barvy | Mono(Yellow) |
| Podsvícení | self |
| Rozhraní | CPU/SPI/I²C |
| značka panelu | RiTdisplay |
| panelový model | RGS24128064YW004 |
| typ panelu | PM-OLED , OLED |
| velikost panelu | 2.4 inch |
| rozlišení | 128×64 |
| aktivní oblast | 55.01×27.49 mm |
| obrys | 60.5×37×2.11 mm |
| povrch | Antiglare |
| jas | 80 cd/m² (Typ.) |
| kontrastní poměr | 2000 : 1 (Min.) |
| zobrazit barvy | Mono(Yellow) (1-bit) |
| úhel pohledu | 80/80/80/80 (Min.)(L/R/U/D) |
| frekvence | 105Hz |
| řidič ic | TAB Built-in SSD1303 |
| signálové rozhraní | 8-bit 6800/8080 parallel, SPI, I²C, 31 pins |
| vstupní napětí | 13.0/2.7V (Typ.)(VCC/VDD) |
| aplikace | IA |
