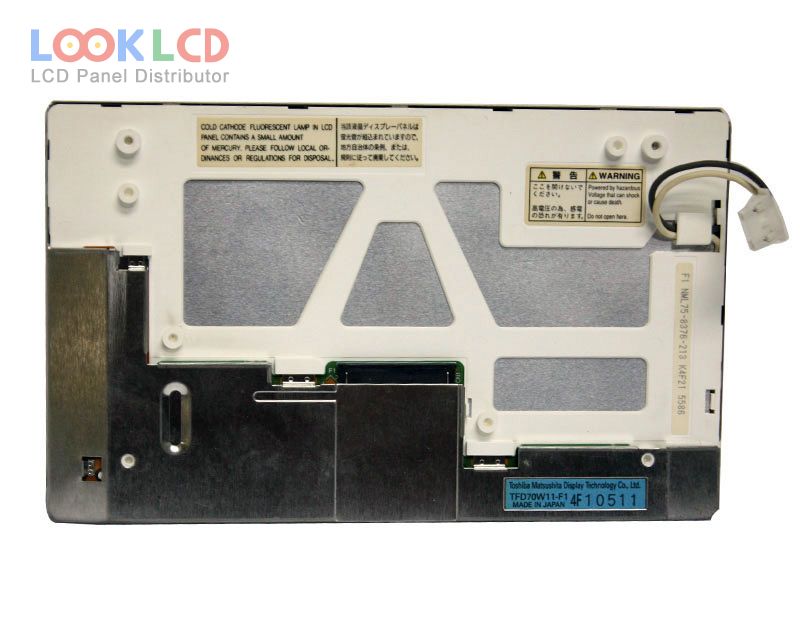

| PartNumber | TFD70W11-F1 |
| Značka | TOSHIBA |
| Velikost | 7.0 |
| aplikace | GM |
| Rozlišení | 480×234 |
| Složení | LCM |
| Jas | 350 |
| CR | 80:1 |
| Barvy | Full color |
| Podsvícení | CCFL |
| Rozhraní | Analog |
| značka panelu | TOSHIBA |
| panelový model | TFD70W11-F1 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 7.0 inch |
| rozlišení | 480(RGB)×234 |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 154.08×87.05 mm |
| obrys | 167.05×102 mm |
| povrch | Antiglare, Reflection 3.0% (Max.) |
| jas | 350 cd/m² (Typ.) |
| kontrastní poměr | 80:1 (Typ.) |
| zobrazit barvy | Full color |
| Doba odezvy | 100/50 (Max.)(Tr/Td) |
| úhel pohledu | 55/55/30/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1 pcsCCFLWithout Driver |
| signálové rozhraní | TFT Specific Analog RGB, 30 pins |
| vstupní napětí | 5.0/18.5/-15.5V (Typ.)(VDD/VGH/VGL) |
| aplikace | GM |
