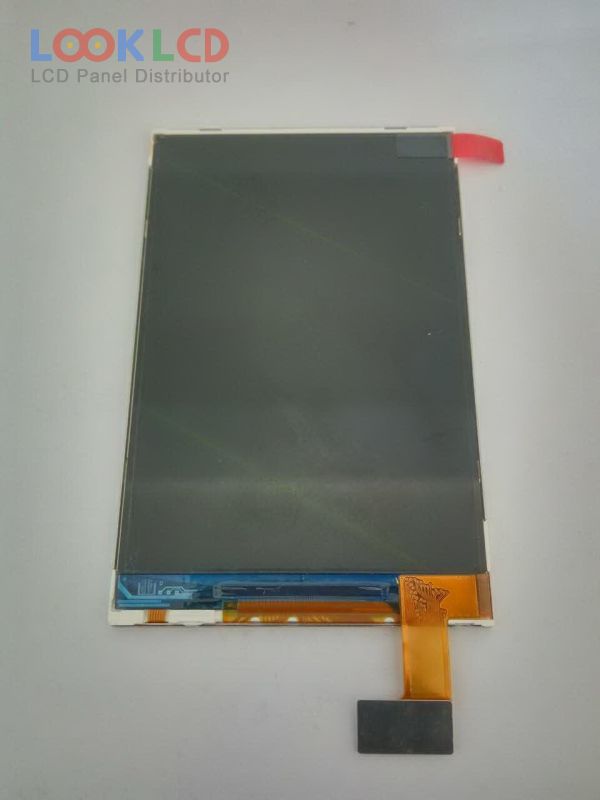

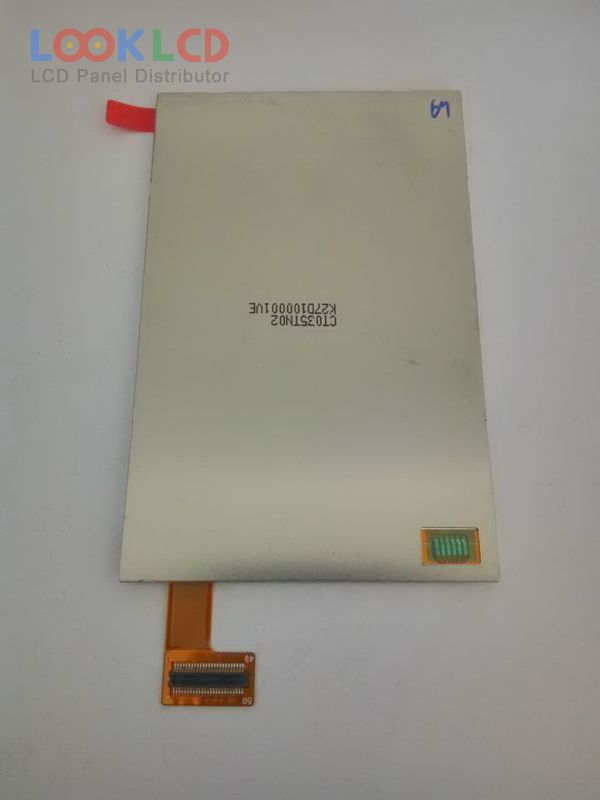

| PartNumber | CT035TN02 |
| Značka | Innolux |
| Velikost | 3.5 |
| aplikace | MPH |
| Rozlišení | 320×480 |
| Složení | LCM |
| Jas | 320 |
| CR | 500:1 |
| Barvy | 65K/262K |
| Podsvícení | WLED |
| Rozhraní | CPU/RGB/SPI |
| značka panelu | CHIMEI INNOLUX |
| panelový model | CT035TN02 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 320(RGB)×480 , HVGA |
| zobrazovací mód | IPS, Normally Black, Transmissive |
| aktivní oblast | 48.96×73.44 mm |
| obrys | 54.76×85.24×2.1 mm |
| povrch | |
| jas | 320 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 65K/262K , CIE193170% |
| Doba odezvy | 30 (Typ.)(Tr+Td) |
| úhel pohledu | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 1S5PWLEDWithout Driver |
| signálové rozhraní | CPU/RGB/SPI, 50 pins |
| vstupní napětí | 2.8/2.8V (Typ.)(VDD3/VCI) |
| aplikace | MPH |
