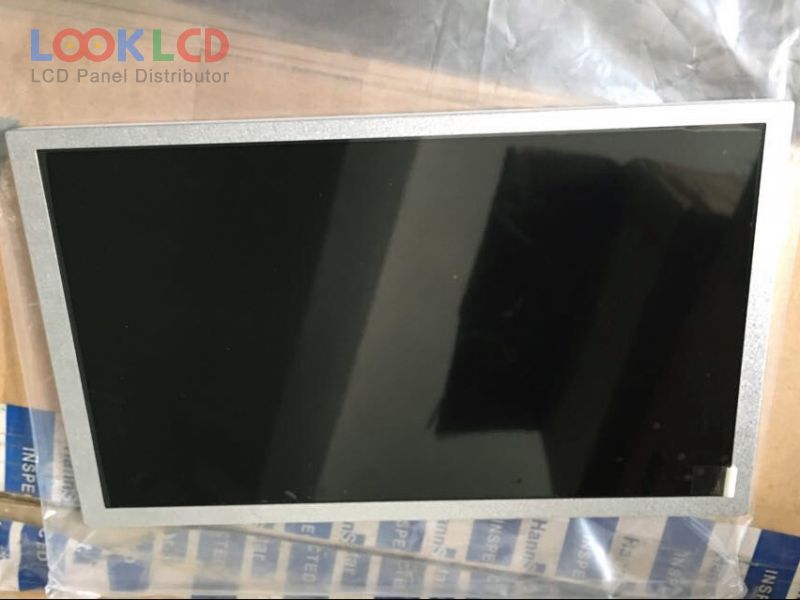

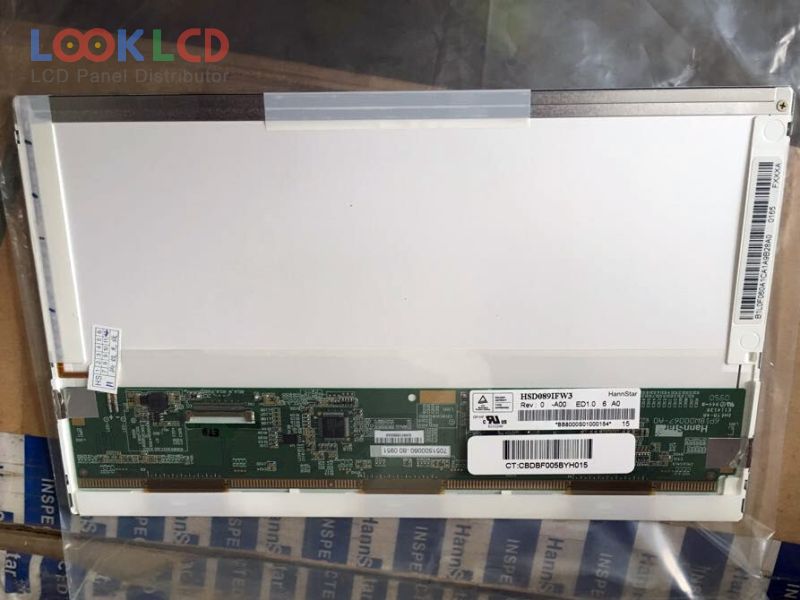

| PartNumber | HSD089IFW3-A00 |
| Značka | HannStar |
| Velikost | 8.9 |
| aplikace | |
| Rozlišení | 1024×600 |
| Složení | LCM |
| Jas | 200 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | LVDS |
| značka panelu | HannStar |
| panelový model | HSD089IFW3-A00 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 8.9 inch |
| rozlišení | 1024(RGB)×600 , WSVGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 195.072×113.4 mm |
| obrys | 213.66×129.85 mm |
| povrch | |
| jas | 200 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit), CIE193150% |
| Doba odezvy | 12 (Typ.)(Tr+Td) |
| úhel pohledu | 75/75/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| typ lampy | WLED |
| signálové rozhraní | LVDS (1 ch, 6-bit), 40 pins |
| rohs: |
