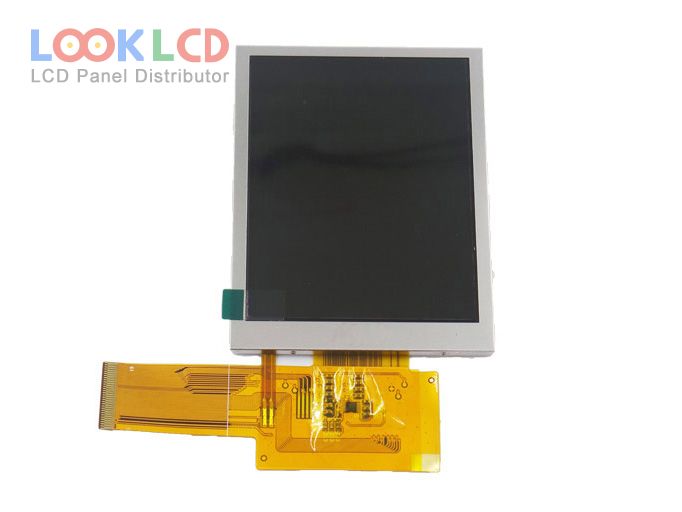

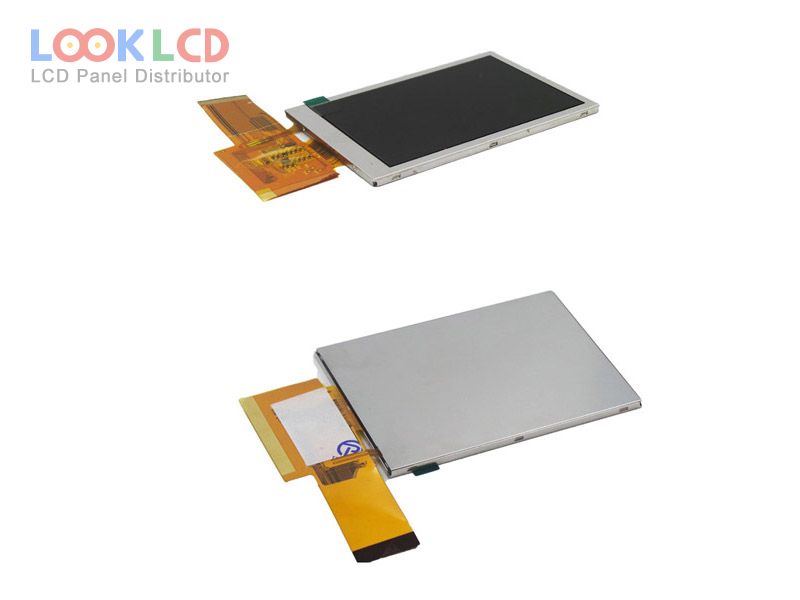

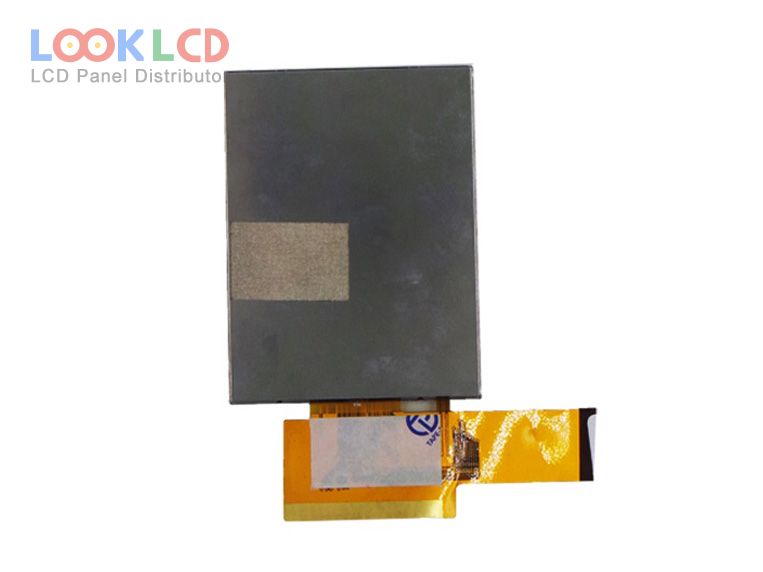

| PartNumber | S035V01 |
| Značka | CDTECH |
| Velikost | 3.5 |
| aplikace | HHP |
| Rozlišení | 480×640 |
| Složení | LCM |
| Jas | 800 |
| CR | 500:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | CPU/RGB/SPI |
| značka panelu | CDTECH |
| panelový model | S035V01 |
| typ panelu | a-Si TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 480(RGB)×640 , VGA |
| zobrazovací mód | TN, Normally White, Transmissive |
| aktivní oblast | 53.28×71.04 mm |
| obrys | 64×85 mm |
| povrch | |
| jas | 800 cd/m² (Typ.) |
| kontrastní poměr | 500:1 (Typ.) |
| zobrazit barvy | 262K (6-bit) |
| Doba odezvy | 25 (Typ.)(Tr+Td) |
| úhel pohledu | 65/65/55/65 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 4S2PWLEDWithout Driver |
| signálové rozhraní | CPU/RGB/SPI, 61 pins |
| vstupní napětí | 3.3/3.3V (Typ.)(VCC/IOVCC) |
| aplikace | HHP |
