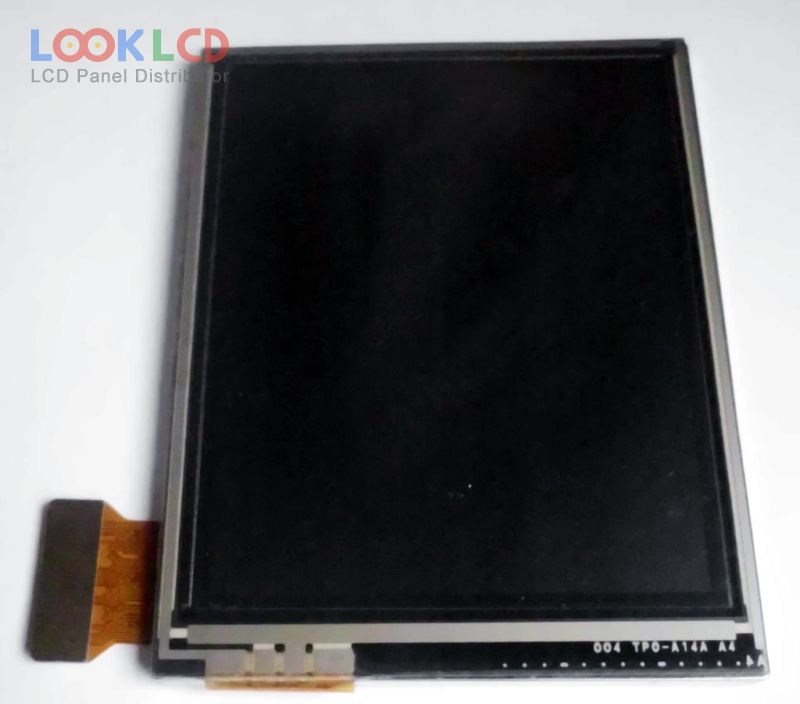

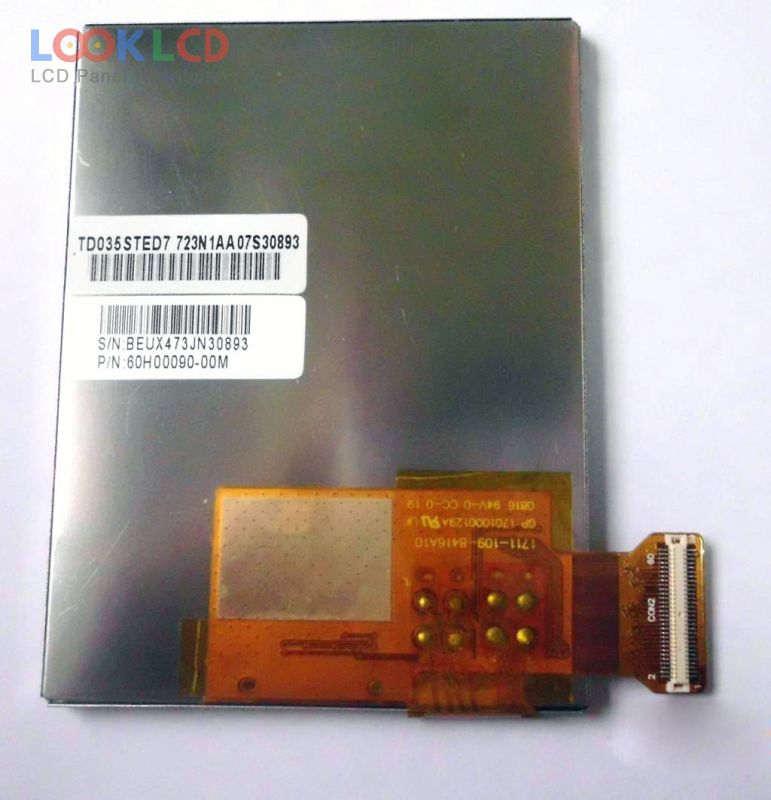

| PartNumber | TD035STED7 |
| Značka | TPO |
| Velikost | 3.5 |
| aplikace | PDA |
| Rozlišení | 240×320 |
| Složení | LCM |
| Jas | 115 |
| CR | 100:1 |
| Barvy | 262K |
| Podsvícení | WLED |
| Rozhraní | TTL |
| značka panelu | TPO |
| panelový model | TD035STED7 |
| typ panelu | LTPS TFT-LCD , LCM |
| velikost panelu | 3.5 inch |
| rozlišení | 240(RGB)×320 , QVGA |
| zobrazovací mód | TN, Normally White, Transflective |
| aktivní oblast | 53.28×71.04 mm |
| obrys | 64×85×5.5 mm |
| povrch | |
| jas | 115 cd/m² (Typ.) |
| kontrastní poměr | 100:1 (Typ.)(Transmissive)15:1 (Typ.)(Reflective) |
| zobrazit barvy | 262K (6-bit), CIE193136% |
| Doba odezvy | 35 (Typ.)(Tr+Td) |
| úhel pohledu | 60/60/50/60 (Typ.)(CR≥10)(L/R/U/D) |
| frekvence | 60Hz |
| typ lampy | 6S1PWLEDWithout Driver |
| signálové rozhraní | Parallel RGB (1 ch, 6-bit) + SPI, 60 pins |
| vstupní napětí | 2.8/2.8/5/10/-5.0V (Typ.)(VDD1/VDD2/AVDD/VGH/VVEE) |
| aplikace | PDA |
